SQL Server AlwaysOn Availability Group Failover Time
[환경]
- OS: Windows Server 2016
- SQL Server: SQL Server 2017
[내용]
- Netbios disable을 통해 AG 환경에서 Failover 시간을 단축 시킬수 있는 것으로 확인된다.

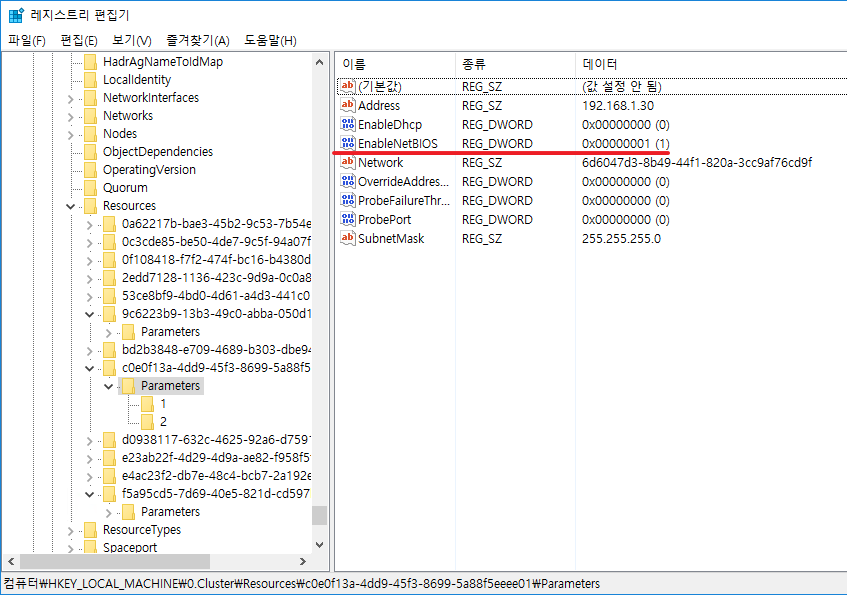

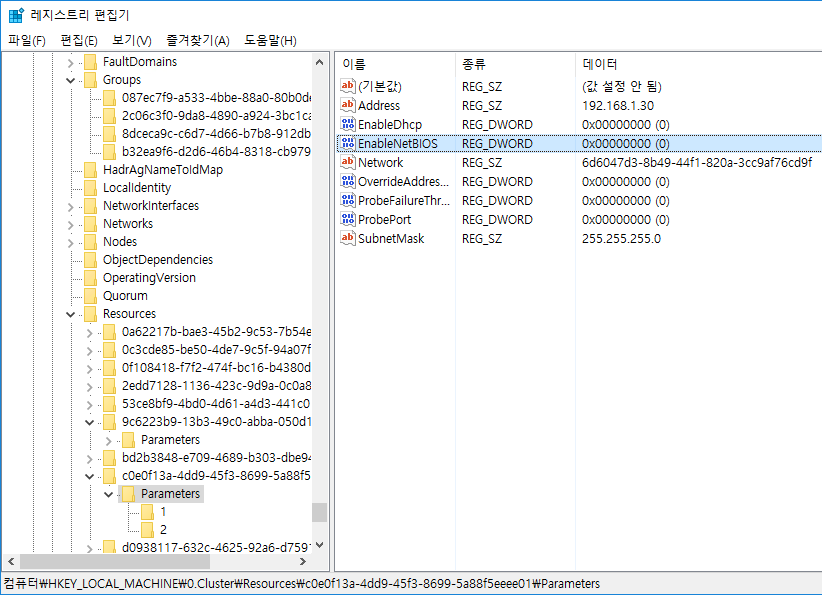

- VIP NetBIOS의 상태는 아래의 레지스트리 경로에서 확인이 가능하다.
HKEY_LOCAL_MACHINE\0.Cluster\Resources\c0e0f13a-4dd9-45f3-8699-5a88f5eeee01\Parameters
[테스트 내용]
- AG 리스터 ip 확인

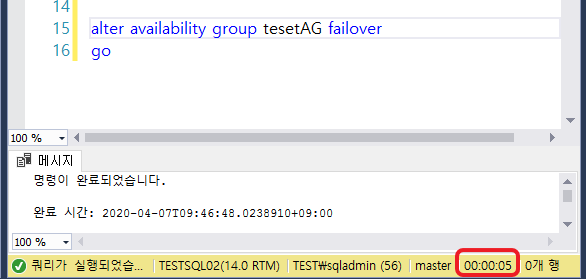

2. AG 리스너 netBIOS disable 상태의 failover 시간 ( 약 5초 가량 소요)
Get-ClusterResource "tesetAG_192.168.1.30" | Set-ClusterParameter EnableNetBIOS 0
- 리소스를 [오프라인 상태로 전환 --> 온라인 상태로 전환] 작업을 하지 않아도 적용 됨을 확인
/*클러스터 로그 확인*/
- Failover 시간 약 5초 소요
|
000013ec.0000192c::2020/04/07-09:46:43.015 INFO [RCM] rcm::RcmApi::MoveGroup: (tesetAG, 2, 0, MoveType::Manual ) 000013ec.00000d64::2020/04/07-09:46:43.021 INFO [GUM] Node 2: Executing locally gumId: 27987, updates: 1, first action: /dm/update 000013ec.00000d64::2020/04/07-09:46:43.024 INFO [GUM] Node 2: Executing locally gumId: 27988, updates: 1, first action: /dm/update 000013ec.0000192c::2020/04/07-09:46:43.469 INFO [GUM] Node 2: Executing locally gumId: 27989, updates: 1, first action: /rcm/gum/GroupMoveOperation ........중략 000013ec.00000dd8::2020/04/07-09:46:47.367 INFO [RCM] Res tesetAG: OnlinePending -> Online( StateUnknown ) 000013ec.00000dd8::2020/04/07-09:46:47.367 INFO [RCM] TransitionToState(tesetAG) OnlinePending-->Online. 000013ec.00000dd8::2020/04/07-09:46:47.367 INFO [RCM] rcm::RcmGroup::UpdateStateIfChanged: (tesetAG, Pending --> Online) 000013ec.00000dd8::2020/04/07-09:46:47.367 INFO [RCM] rcm::RcmGroup::ProcessStateChange: [RCM] Group move for 'tesetAG' has completed. 000013ec.00000dd8::2020/04/07-09:46:47.367 INFO [RCM] rcm::RcmGroup::ProcessStateChange: [RCM] DrainMgr: Not Sending message to Src node for group tesetAG after successful online |

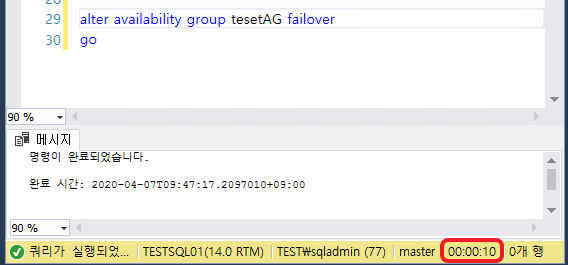

3. AG 리스너 NetBIOS enable상태의 failover 시간(10초 정도 소요)
/*클러스터 로그 확인*/
- Failover 시간이 약 10초 정도 소요된 것을 확인
|
--AG리스너 netBIOS Enable 00000cc0.000019a4::2020/04/07-09:46:56.358 INFO [RES] IP Address <tesetAG_192.168.1.30>: IpaValidatePrivateResProperties: attempting to change property EnableNetBIOS from 0 to 1.
--Failover 테스트 00000a18.000024c0::2020/04/07-09:47:06.479 INFO [RCM] rcm::RcmApi::MoveGroup: (tesetAG, 1, 0, MoveType::Manual ) 00000a18.000026fc::2020/04/07-09:47:06.480 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter NodeDownFilter 00000a18.000026fc::2020/04/07-09:47:06.480 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter NodeShuttingDownFilter 00000a18.000026fc::2020/04/07-09:47:06.480 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter CurrentNodeFilter 00000a18.000026fc::2020/04/07-09:47:06.480 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter PausedNodeFilter 00000a18.000026fc::2020/04/07-09:47:06.481 INFO [RCM] Group tesetAG: done going through resources, returning true 00000a18.000026fc::2020/04/07-09:47:06.481 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter PossibleOwnerFilter 00000a18.000026fc::2020/04/07-09:47:06.481 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter QueuingPerviouslyRejectedFilter 00000a18.000026fc::2020/04/07-09:47:06.481 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter PreferredOwnerWaitFilter 00000a18.000026fc::2020/04/07-09:47:06.481 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter AntiAffinityFilter 00000a18.000028a0::2020/04/07-09:47:06.481 INFO [RCM] applying timely STM connectivity snapshot for group tesetAG 00000a18.000026fc::2020/04/07-09:47:06.481 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter StmFilter 00000a18.000026fc::2020/04/07-09:47:06.481 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter DependentCsvSiteFilter 00000a18.000026fc::2020/04/07-09:47:06.481 INFO [RCM-plcmt] Group tesetAG allowed to move to node 1 by filter CPUReservationFilter 00000a18.000026fc::2020/04/07-09:47:06.486 INFO [GUM] Node 1: Executing locally gumId: 28014, updates: 1, first action: /dm/update 00000a18.000026fc::2020/04/07-09:47:06.486 INFO [DM] Starting replica transaction, paxos: 29:29:33078, smartPtr: HDL( 448ffec00 ), internalPtr: HDL( 1251915d630 ) 00000a18.000026fc::2020/04/07-09:47:06.487 INFO [DM] Finished replica transaction, paxos: 29:29:33078, smartPtr: HDL( 448ffec00 ), internalPtr: HDL( 1251915d630 ), status: 0 00000a18.000026fc::2020/04/07-09:47:06.489 INFO [GUM] Node 1: Executing locally gumId: 28015, updates: 1, first action: /dm/update 00000a18.000026fc::2020/04/07-09:47:06.489 INFO [DM] Starting replica transaction, paxos: 29:29:33079, smartPtr: HDL( 448ffec00 ), internalPtr: HDL( 1251915d0e0 ) 00000a18.000026fc::2020/04/07-09:47:06.490 INFO [DM] Finished replica transaction, paxos: 29:29:33079, smartPtr: HDL( 448ffec00 ), internalPtr: HDL( 1251915d0e0 ), status: 0 00000a18.000026fc::2020/04/07-09:47:07.349 INFO [GUM] Node 1: Executing locally gumId: 28016, updates: 1, first action: /rcm/gum/GroupMoveOperation 00000a18.000026fc::2020/04/07-09:47:07.349 INFO [RCM] rcm::RcmGum::GroupMoveOperation(1) 00000a18.000026fc::2020/04/07-09:47:07.349 INFO [RCM] move of group tesetAG from testsql02(2) to testsql01(1) of type MoveType::Manual is about to succeed, failoverCount=1, lastFailoverTime=2020/04/06-10:51:02.467 targeted=true ......중략 00000a18.000026fc::2020/04/07-09:47:17.169 INFO [RCM] Res tesetAG: OnlinePending -> Online( StateUnknown ) 00000a18.000026fc::2020/04/07-09:47:17.169 INFO [RCM] TransitionToState(tesetAG) OnlinePending-->Online. 00000a18.000026fc::2020/04/07-09:47:17.169 INFO [RCM] rcm::RcmGroup::UpdateStateIfChanged: (tesetAG, Pending --> Online) 00000a18.000026fc::2020/04/07-09:47:17.169 INFO [RCM] rcm::RcmGroup::ProcessStateChange: [RCM] Group move for 'tesetAG' has completed. 00000a18.000026fc::2020/04/07-09:47:17.169 INFO [RCM] rcm::RcmGroup::ProcessStateChange: [RCM] DrainMgr: Not Sending message to Src node for group tesetAG after successful online |
[참고]
